If your Ford F-250’s 4×4 system feels sluggish or you’re hearing unusual noises from underneath the truck, old or incorrect transfer case fluid could be the culprit. Knowing the Ford F-250 transfer case fluid capacity is critical for proper maintenance, especially since requirements vary dramatically by generation, ranging from 1.8 liters in modern trucks to 4.5 quarts in classic models. Using the wrong fluid, including Mercon V, can lead to premature failure even though it’s a Ford-branded product. This guide breaks down exact capacities, correct fluids, and best practices for every generation so you can keep your Super Duty running smoothly.
Modern F-250: 2017–2026 Models
For the latest Super Duty trucks, Ford standardized transfer case fluid type and capacity across gas and diesel variants. Whether you drive a 6.2L, 6.7L Power Stroke, 7.3L V8, or 6.8L gas engine, the specifications remain consistent.
BorgWarner BW4464 and BW4465 Specifications
These chain-driven transfer cases appear across the entire 2017–2026 lineup. They require a specific low-viscosity automatic transmission fluid designed for precision lubrication and thermal stability.
- Fluid Type: Mercon LV ATF (Specification WSS-M2C938-A)
- Ford Part Number: XT-10-QLVC
- Capacity: 1.9 quarts (1.8 liters or 3.8 pints)
This capacity reflects a complete drain and refill. Most aftermarket kits include 2 liters of fluid to allow for minor spillage and internal line retention.
Why Mercon LV Matters
Mercon LV is a synthetic ATF formulated for high-shear applications like transfer cases and advanced transmissions. It flows better in cold weather and maintains film strength under heavy loads, which is critical for towing and off-road use.
Never use Mercon V in these models. Despite being a Ford fluid, Mercon V is not approved for transfer cases and can degrade seals and clutches over time.
Fill Procedure Tips
The fill plug is often hard to reach on these models. Use one of these tools to make the job easier:
- Hand pump that screws directly onto a fluid container (Amsoil or OEM-style)
- Long-spout rear-end filler bottle
- Transfer pump with flexible hose
Fill until fluid begins to drip from the fill hole, which indicates the proper level. Always apply Teflon tape to the plug threads to prevent leaks.
1999–2016 F-250 Transfer Case Fluid
This era includes the New Venture NV271F and NV273F transfer cases, commonly found in 4×4 Super Duties from the late 1990s through 2016.
NV271F and NV273F Specifications
- Fluid Type: Mercon LV ATF (preferred), or legacy Motorcraft XL-12
- Original Specification: Mercon ATF (not Mercon V)
- Ford Specification Reference: QU90046 or XL-12
- Capacity: 2.0 quarts (4.0 pints or 1.9 liters)
While Mercon was originally specified, Mercon LV is now the factory-recommended upgrade and offers better performance and longevity.
Critical Warning: Avoid Mercon V
Even though Mercon V replaced Mercon in transmissions, it is explicitly not approved for 4×4 transfer cases. Using it can cause:
- Premature clutch wear
- Seal degradation
- Reduced shift quality
Stick with Mercon LV or, if unavailable, original-spec Mercon. Dexron III is an acceptable substitute in a pinch.
Service Interval Recommendation
Change fluid every 30,000 miles, especially if you tow or drive off-road regularly. The transfer case runs whenever the driveshaft spins, even in 2WD, so fluid degrades over time regardless of 4×4 usage.
1980–1998 F-250 Models
This period saw multiple transfer case models and a transition from engine oil to ATF-based lubricants.
BW1356 and BW1345 Cases (1987–1997)
- Fluid: QU90046 or XL-12 (Mercon LV equivalent)
- Capacity: 2.0 quarts (4.0 pints)
These BorgWarner units originally used Mercon ATF, later upgraded to XL-12 and now Mercon LV. The fluid change is straightforward: drain, refill, and torque to spec.
BW1345 Capacity Note
The BW1345 used in 1980–1991 models has a slightly larger capacity:
- Capacity: 3.25 quarts (6.5 pints)
NP208 Case (1980–1986)
- Fluid: Dexron II or III ATF
- Capacity: 3.5 quarts (7.0 pints)
The NP208 was a common chain-driven case. Dexron fluids meet Ford specification XT-2-QDX and remain acceptable today. Mercon LV can also serve as a modern upgrade.
BW4407 (1996–1997)
- Fluid: QU90046 or XL-12
- Capacity: Approximately 2.0 quarts (4.0 pints), consistent with same-era models
No official factory capacity is listed, but service records confirm this aligns with the NV271 and NV273 standard.
Classic Era: 1959–1979 F-250
Older F-250s used gear-driven or early chain cases with very different fluid needs. Some required engine oil while others used gear lube.
NP205 Part-Time Case (1973–1979)
- Original Fluid: SAE 50 engine oil
- Modern Equivalent: 75W-90 GL-4 gear lube (XT-4-QGL) or full synthetic manual transmission fluid (XT-M5-QS)
- Capacity: 2.0 quarts (4.0 pints)
The NP205 is robust and can tolerate gear oil if seals are in good condition. However, engine oil was original spec, so stick with it if preserving vintage integrity.
NP203 Full-Time Case (1974–1979)
- Critical Rule: Use only engine oil
- Fluid: SAE 50 (above 10°F) or SAE 30 (below 10°F)
- Capacity: 4.5 quarts (9.0 pints)
Never use ATF or gear oil in an NP203. Its chain design relies on the lubricity and viscosity of engine oil. Heavier lubes cause chain stretch and bearing failure.
Dana 24 Case (1959–1972)
- Fluid: SAE 50 engine oil
- Capacity: 2.25 quarts (4.5 pints)
One of the earliest transfer cases, the Dana 24 was simple but required regular fluid changes. Stick with non-detergent SAE 50 for vintage builds.
Fluid Compatibility and Warnings
Using the wrong fluid can destroy a transfer case. Here’s what to avoid and what to use instead.
Mercon V: The Forbidden Fluid
Despite being Ford-approved for transmissions, Mercon V is not for transfer cases. It lacks the friction modifiers and shear stability needed for 4×4 systems. Use it and risk:
- Slipping shift actuators
- Premature chain wear
- Internal corrosion
Stick to Mercon LV for models from 1999 onward.
Seal Compatibility in Older Trucks
When upgrading pre-1980s transfer cases from engine oil to ATF or synthetic gear oil:
- Check seals for swelling or brittleness
- Replace gaskets during service
- Consider a rebuild kit if switching fluid types
Original rubber compounds weren’t designed for modern synthetics.
NP203: Engine Oil Only
Do not use ATF or gear oil in the NP203. This full-time case depends on the slip characteristics of engine oil. Gear lube increases friction, leading to chain failure.
How to Check and Change Fluid
A clean transfer case starts with a proper fluid change. Here’s how to do it right.
Drain and Refill Steps
- Warm up the vehicle by driving for 10–15 minutes to thin the fluid.
- Jack up the truck and ensure it’s level for accurate fill.
- Locate drain and fill plugs, usually on the side or bottom of the case.
- Remove the drain plug and let fluid flow into a pan.
- Inspect for metal particles. Fine metallic paste is normal; chunks indicate internal damage.
- Replace the drain plug using Teflon tape on the threads.
- Fill via the fill hole using a pump until fluid runs out.
- Reinstall the fill plug and torque to spec (typically 25–35 ft-lbs).
Tools You’ll Need
- Hand pump for hard-to-reach fill holes
- Socket set (3/8″ or 1/2″ drive)
- Torque wrench to prevent over-tightening
- Drain pan with at least 5-quart capacity
- Teflon tape for plug threads
Sealant Tips
- Plug threads: Use Teflon tape only
- Cover gaskets: Use Permatex “Right Stuff,” since standard silicone is too soft and may leak
Maintenance Schedule and Best Practices
Don’t wait for a failure. Stay ahead with smart maintenance.
When to Change Fluid
- Every 30,000 miles for heavy towing or off-road use
- Every 50,000 miles for light-duty 2WD driving
- Immediately if fluid is dark, smells burnt, or contains metal chunks
Even in 2WD, the transfer case spins with the driveshaft, so fluid degrades over time regardless of 4×4 usage.
Fluid Brand Recommendations
Stick with quality brands for reliability:
- Motorcraft XT-10-QLVC for OEM factory fill consistency
- Amsoil Signature Series ATF for excellent shear resistance
- Ravenol MERCON LV ATF as a direct OE equivalent
Many owners use Amsoil in the transfer case and Motorcraft in the transmission, but don’t mix incompatible fluids.

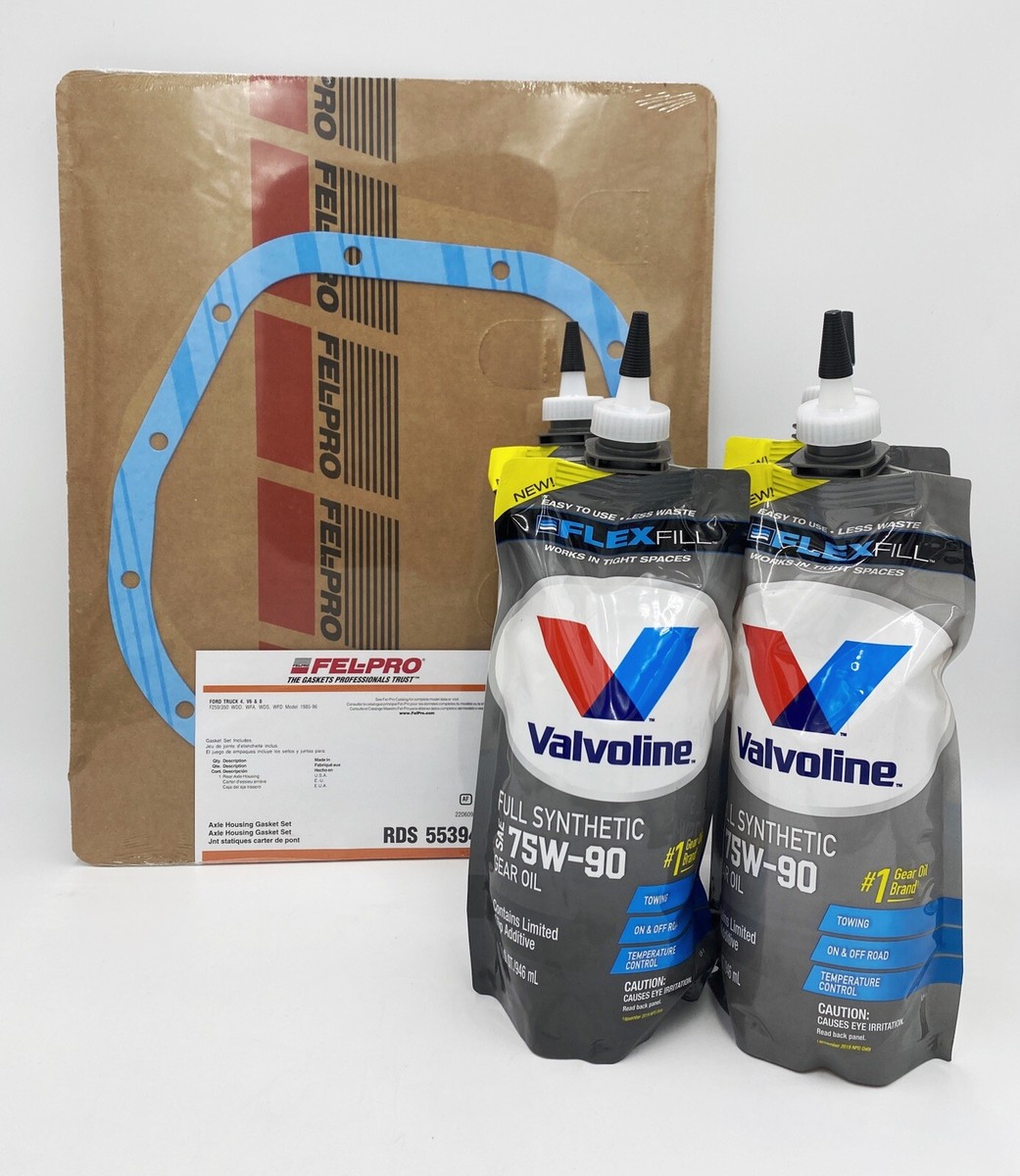

Drivetrain Kit Buying Guide
When changing fluid, service the whole drivetrain at once. Kits save time and money.
What’s in a Modern Kit (2017–2026)
- Transfer Case: 2L Mercon LV ATF (WSS-M2C938-A)
- Front Differential: 3L 80W-90 GL-5 (WSP-M2C197-A)
- Rear Differential: 4L gear oil (75W-85 or 75W-140 based on axle)
Axle Identification Tips
- Sterling 10.5″: 2.5″ hitch, fewer than 4 leaf springs, uses 75W-85
- Dana M275 or Sterling 11.6″: 3.0″ hitch, more than 5 leaf springs, uses 75W-140
Check your door jamb sticker or VIN with a dealer to confirm.
Troubleshooting Common Issues
Catch problems early with these checks.
Leaking Fill Plug
The most common cause is missing Teflon tape. Always wrap threads before reinstalling.
Metal on Drain Plug Magnet
- Fine metallic dust indicates normal wear
- Chunks or shavings signal internal damage requiring further inspection
Noisy Operation After Fill
Likely causes include:
- Underfilled: Recheck the level
- Wrong fluid: Verify spec (such as a Mercon V mistake)
- Air trapped: Run through 4×4 modes to cycle fluid
Frequently Asked Questions About Ford F-250 Transfer Case Fluid Capacity
What is the transfer case fluid capacity for a 2017–2026 Ford F-250?
Modern F-250 Super Duty models with BorgWarner BW4464 or BW4465 transfer cases require 1.9 quarts (1.8 liters) of Mercon LV ATF meeting specification WSS-M2C938-A.
Can I use Mercon V in my Ford F-250 transfer case?
No. Mercon V is explicitly not approved for Ford transfer cases despite being a Ford-branded transmission fluid. Using it can cause premature clutch wear, seal degradation, and reduced shift quality. Use Mercon LV instead.
How often should I change transfer case fluid in my F-250?
Change transfer case fluid every 30,000 miles, especially if you tow or drive off-road. The transfer case spins with the driveshaft even in 2WD mode, so fluid degrades regardless of how often you use 4×4.
What fluid does a 1999–2016 Ford F-250 transfer case require?
The NV271F and NV273F transfer cases in this era use Mercon LV ATF as the current standard, though they originally specified Mercon ATF. Capacity is 2.0 quarts (4.0 pints).
What kind of fluid goes in a 1974–1979 NP203 transfer case?
The NP203 full-time transfer case requires engine oil only, specifically SAE 50 above 10°F or SAE 30 below 10°F. Capacity is 4.5 quarts. Never use ATF or gear oil, as heavier lubricants cause chain stretch and bearing failure.
How do I identify which rear axle my F-250 has?
Check the drawbar hitch size and leaf spring count. A 2.5″ hitch with fewer than 4 leaf springs indicates a Sterling 10.5″ axle using 75W-85 fluid. A 3.0″ hitch with more than 5 leaf springs indicates a Dana M275 or Sterling 11.6″ axle requiring 75W-140.
Key Takeaways for Maintaining Your Ford F-250 Transfer Case
Understanding Ford F-250 transfer case fluid capacity goes beyond knowing the volume. It’s about matching the correct fluid to your specific generation. Modern 2017–2026 models need just 1.9 quarts of Mercon LV, while classic NP203 cases from the 1970s require 4.5 quarts of engine oil. Avoid Mercon V across all applications, respect seal compatibility when upgrading older trucks, and change fluid every 30,000 miles for optimal longevity. Start by confirming your transfer case model via VIN, gathering the right tools, and following the drain-and-fill procedure outlined above. Your Super Duty’s 4×4 system will reward you with years of reliable service.
