You hop into your truck, hit the seat switch, and nothing happens. No forward, no back, no up, no down. You are stuck in one position, and adjusting on the fly becomes a safety issue. The good news? This is a common, solvable problem in the 2008 Ford F250. Most of the time, the motor is perfectly fine. Power just is not reaching it. The real culprit usually hides in one of four spots: a blown fuse, a dead switch, broken wiring under the seat, or a hidden module failure. This guide walks you through a proven diagnostic path so you can find the exact problem and fix it without wasting money on parts you do not need.
Check Fuse #45 First
Locate the Engine Compartment Fuse Box
Start with the easiest and most common fix. Fuse #45 in the engine compartment fuse box powers the driver side power seat on the 2008 F250. A blown fuse kills all seat functions instantly. Open the fuse box near the battery and find the #45 slot, usually a 20-amp fuse. Pull it out and look at the metal strip inside. If it is broken or blackened, you found your problem.
Do Not Trust the Labels Blindly
Even if your truck does not have memory seats, check the interior fuses too. On similar Ford models, Fuse #5 in the kickboard panel on the driver side footwell is labeled “Memory Module” but actually powers the power seat. The 2008 F250 primarily relies on Fuse #45, but wiring can vary by trim or VIN. Test both fuses with a multimeter for continuity. Replace any blown fuse with the correct amperage, and never jump a fuse with a higher rating.
Test the Power Seat Motor
Bypass the System with Direct Power
Before you start pulling switches or cutting into wires, confirm the motor works. Disconnect the motor harness plug under the seat and connect the motor terminals directly to a 12V battery using jumper wires. Red goes to positive, black goes to negative. If the motor spins and tries to move the seat, it is good. That means the fault sits upstream in the fuse, switch, wiring, or module.
Clear Debris Before Testing
Never force the seat if it feels jammed. Coins, keys, or dirt in the tracks create extra resistance. That added load can overheat and burn out a perfectly good motor. Slide the seat fully forward and fully back, checking both rails for blockages. Clear everything before you test or replace any parts.

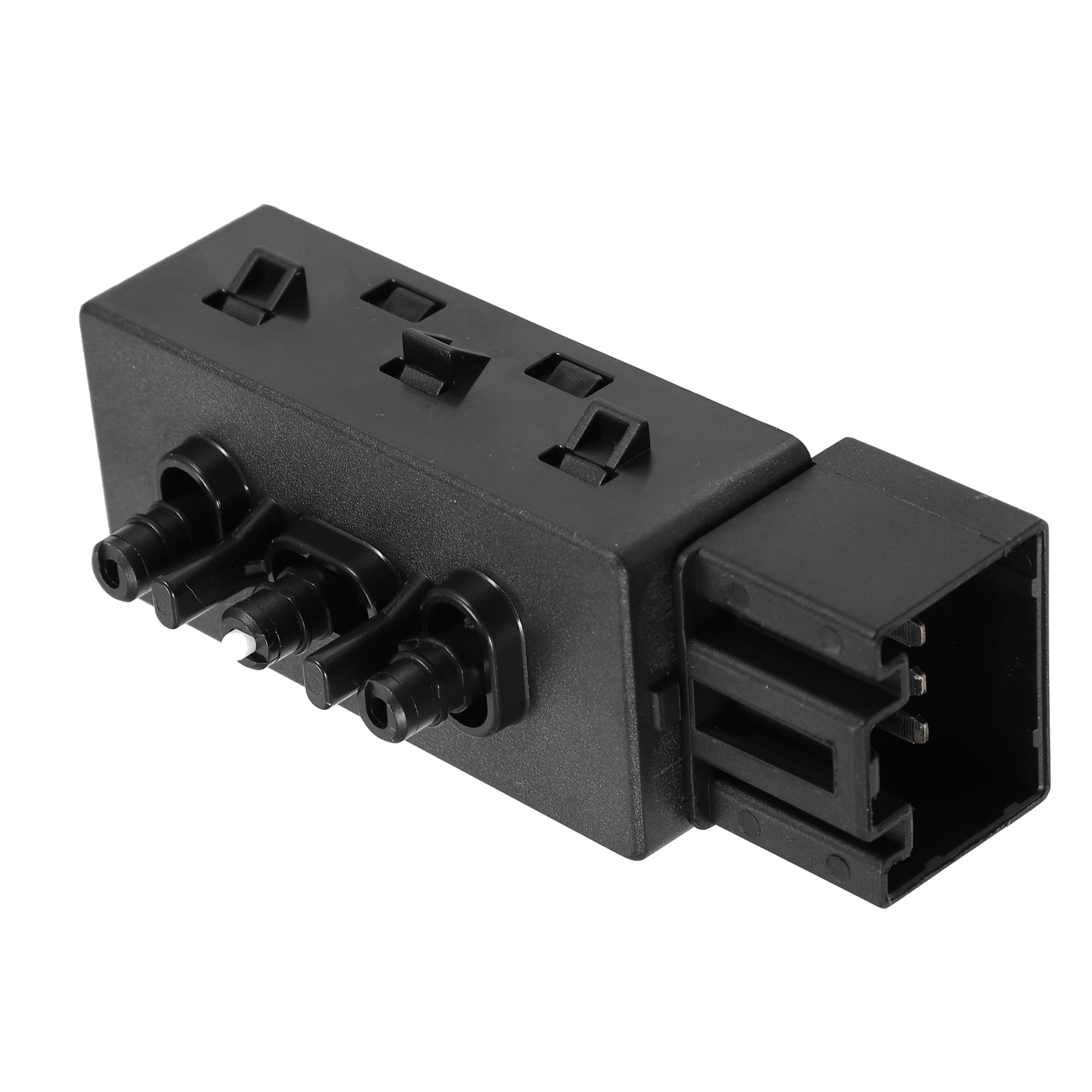

Inspect the Power Seat Switch
Remove and Test for Continuity
The power seat switch is a frequent failure point. It sits on the side of the seat and takes constant abuse from use, spills, and wear. Remove the switch by prying it from the seat side panel. No tools are usually required. Set a digital multimeter to continuity mode. Probe the terminals while you press each button: forward, back, up, and down. You should hear a beep when the circuit closes.
Spot Internal Contact Failure
No beep means the internal contacts are worn or corroded. Even if the switch still feels clicky, it can be electrically dead. The 2008 F250 switch typically has 8 terminals with blade or bullet connectors. Common replacement options include Standard Ignition PSW5 (female connector, blade terminals) or Dorman 901-254 (male clip-on, blade type). Match the terminal count, connector gender, and mounting style to your original part.
Examine Under-Seat Wiring
Look for Pinched or Corroded Wires
The wiring harness under the driver seat flexes every time the seat moves. Over time, wires fray, break, or get pinched by the seat rails. Unplug the harness connectors and inspect for:
- Bent or corroded pins
- Cracked insulation
- Wires pulled loose at crimps
Pay close attention to the ground wire. It is often black and connects to the seat frame or floor. If the ground is loose, rusty, or painted over, the circuit fails. Clean the contact point with sandpaper and reattach it tightly.
Repair with a New Harness
If wires are damaged, do not splice them with tape. Use a repair harness like Standard Ignition S2079, an 8-wire, 12-gauge harness with blade terminals and splice connectors. It includes a male plug and 12 inches of wire, making it perfect for replacing broken sections. This is faster and safer than rewiring the whole system.
Diagnose Hidden Control Module Issues
Scan for Seat System Codes
Even without memory seats, your 2008 F250 may have a seat control module managing power distribution. If the fuse, switch, and wiring all check out, this module could be the silent killer. Use a professional OBD2 scan tool that accesses body control modules. Look for codes like:
- B2A78 – Seat Position Sensor Circuit
- B2A90 – Power Seat Motor Circuit
- U0100 – Lost Communication with Module
A stored code points to internal module failure. No codes does not mean the module is good. Intermittent electronics do not always log errors.
Know When to Replace the Module
Control modules rarely fail outright, but they can degrade over time. If everything else checks out and the motor runs on direct power, replacement is the final step. The 2008 F250 typically uses a plug-and-play module, but confirm compatibility with your VIN before ordering.

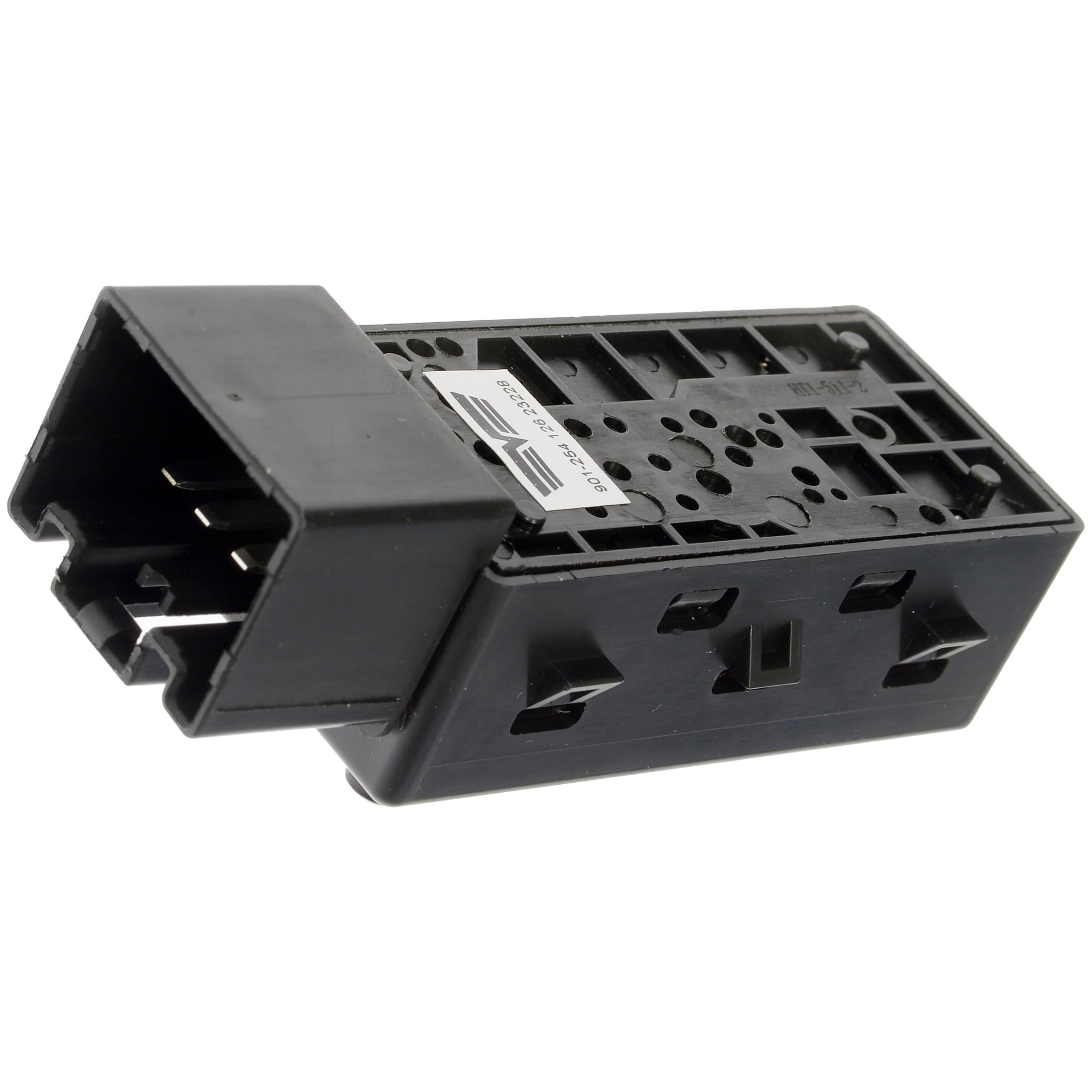

Compare Replacement Switch Options
Match Terminal Type and Gender
Not all switches fit all trucks. Use this quick reference to pick the right part:
| Part Number | Terminals | Connector | Terminal Type | Mounting | Best For |
|---|---|---|---|---|---|
| PSW106 | 8 | Male | Bullet | Clip-on | Basic models, direct fit |
| PSW5 | 8 | Female | Blade | Clip-on | Late-model compatibility |
| Dorman 901-254 | 8 | Male | Blade | Clip-on | Budget-friendly OEM |
| Dorman 920-663 | 8 | Male | Bullet | Bolt-on | Heavy-duty or modified seats |
Prices range from $104 to $137. Dorman parts are reliable aftermarket options. Standard Ignition offers lifetime warranties. Always unplug the battery before installing a new switch.
Prevent Future Failures
Clean Tracks and Apply Dielectric Grease
Dirt and debris cause resistance, which strains the motor and switch. Every six months, slide the seat all the way back and clean the tracks with a stiff brush. Wipe with a dry cloth. Then apply a light coat of white lithium grease to the rails. Do not use oil, because it attracts dust.
Protect Connectors from Moisture
Moisture gets under the seat and corrodes connectors, especially in wet climates or after spills. After cleaning, apply dielectric grease to the pins before reconnecting. This seals out moisture and prevents oxidation. It is a 30-second step that doubles connector life.
Check Grounds Annually
The seat ground is often overlooked. Every year, inspect the ground wire under the seat. Make sure it is bolted tightly to bare metal. Scrape off rust or paint if needed. A poor ground mimics a dead motor or blown fuse.
Frequently Asked Questions About the 2008 F250 Power Seat
Where is the power seat fuse on a 2008 Ford F250?
The primary fuse is Fuse #45 in the engine compartment fuse box, typically a 20-amp fuse. On some related Ford models, Fuse #5 in the interior kickboard panel also powers the seat, even though it is labeled “Memory Module.”
How do I know if my power seat motor is bad?
Disconnect the motor harness under the seat and connect the motor directly to a 12V battery using jumper wires. If the motor spins, it is good and the problem lies elsewhere in the electrical path.
Can a bad switch cause the power seat to not work at all?
Yes. Worn or corroded internal contacts inside the switch can interrupt power flow completely, even if the switch still feels clicky. Testing with a multimeter in continuity mode confirms the failure.
What causes one-direction power seat failure?
A single-direction failure usually points to internal switch contact failure or a broken wire in a specific run of the harness. Inspect the wiring under the seat and test the switch for continuity on all positions.
How much does a power seat switch cost for a 2008 F250?
Replacement switches range from about $104 to $137 depending on the brand and terminal type. Standard Ignition and Dorman both offer reliable aftermarket options with limited lifetime warranties.
Do I need to program a new seat control module?
The 2008 F250 typically uses a plug-and-play module, so programming is not usually required. Always confirm compatibility with your VIN before purchasing.
Key Takeaways for Fixing Your 2008 F250 Power Seat
When your 2008 Ford F250 power seat stops working, follow this diagnostic order:
- Check Fuse #45 in the engine bay first.
- Test the motor with direct battery power.
- Inspect the switch for continuity.
- Examine wiring under the seat for breaks or corrosion.
- Verify the ground connection is clean and tight.
- Scan for module codes if everything else checks out.
Most issues are solved in under an hour with basic tools. You do not need to pay a dealership $500 for a $15 fuse or a $120 switch. Keep a spare 20-amp fuse in your glovebox. It is the fastest fix you will ever make, and it gets you back behind the wheel in your perfect driving position.
